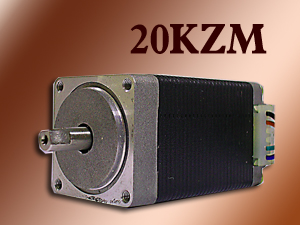

二相混合型 |
步進角度 1.8 |
尺寸 20mm |
扭力 0.16~0.4kg-cm |
機身長 28~38mm |
General Specification for Hybrid Step Motors
Item ( 項目 )
|
Specifications ( 規格 ) |
Step Angle Accuracy (步進角精度) |
±5%(full step,no load) |
Resistance Accuracy (電阻精度) |
±10% |
Inductance Accuracy (電感精度) |
±20% |
Temperature Rise (溫升) |
80℃Max,(rated current,2phase on) |
Ambient Temperature (環境溫度) |
-10℃~+50℃ |
Insulation Resistance (絕緣等級) |
100MΩMin,500VDC |
Dielectric Strength(介電強度) |
500VAC for one minute |
Shaft Radial Play (轉軸徑向跳動) |
0.06Max,(450g-load) |
Shaft Axial Play (轉軸軸向跳動) |
0.08 Max,(450g-load) |
Size 20 mm Hybrid Stepping Motor Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
